Description
Design Components
Our professional-grade straps trapeze bars are made of mild steel. Two options are available.

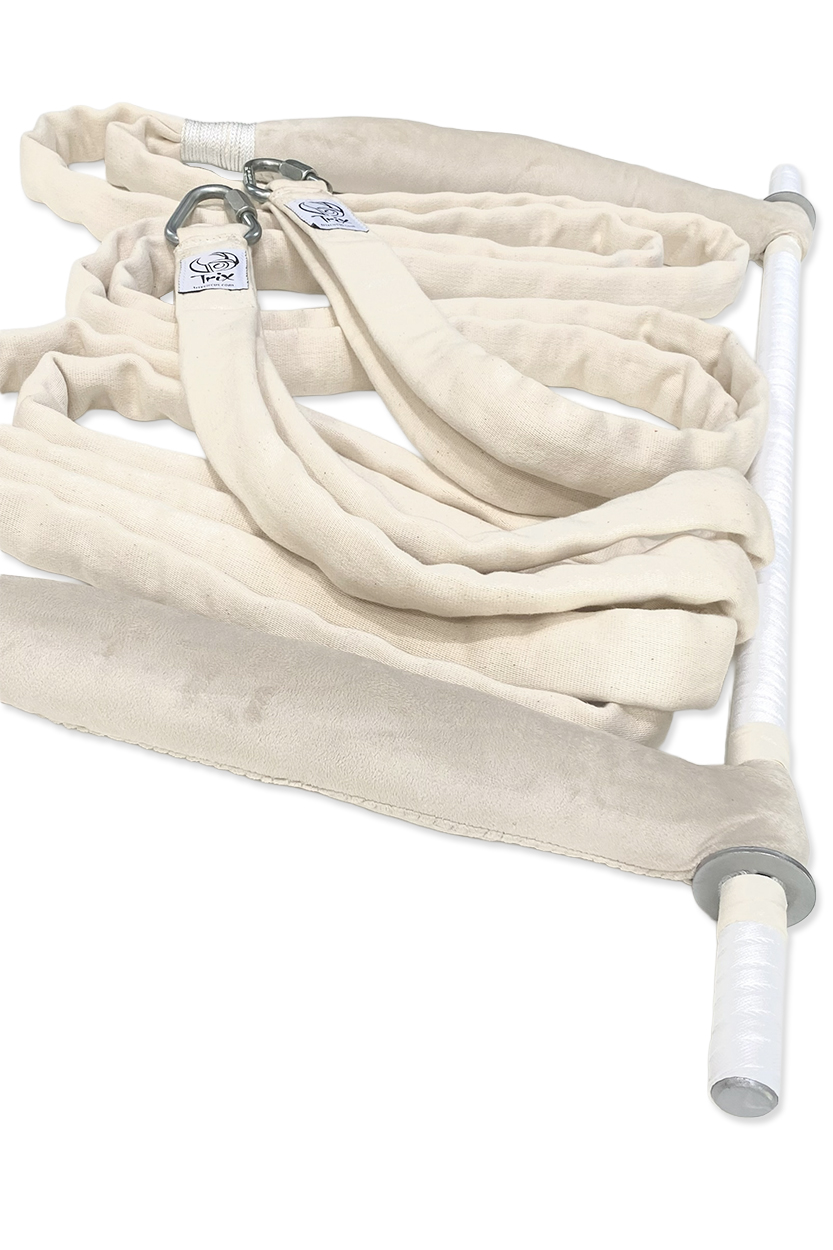

Padded Straps Trapeze
- With the bar-to-rope locking technology that makes Trix Circus trapezes solid, stable and safe.
- Our standard trapeze bar is 60cm long with approximately 56cm of working space between the ropes. The solid steel bar is 25mm thick and is the perfect size for your grip, yet comfortable for toe hangs, heel hangs and back balances.
- A dance trapeze or duo trapeze option available. The bar is also able to be customized to specific needs.
- Padded lyra strap-style “ropes” with padded elbows for loads of comfort. The cotton fabric straps are all reinforced with nylon webbing for added strength and safety and packed for comfort.
- Non-sliding style only.
- 12mm delta maillons for top attachment.
Strength**
MBS ropes**
|
4,800kg
|
Dynamic WLL*
|
1,200kg
|
Bar Point of Deflection
|
1,500kg
|
User Load Limit
|
170kg
|
*User loads must take into account dynamic forces applied and not exceed the dynamic WLL.
**MBS/WLL/ULL units reflect double rope usage.

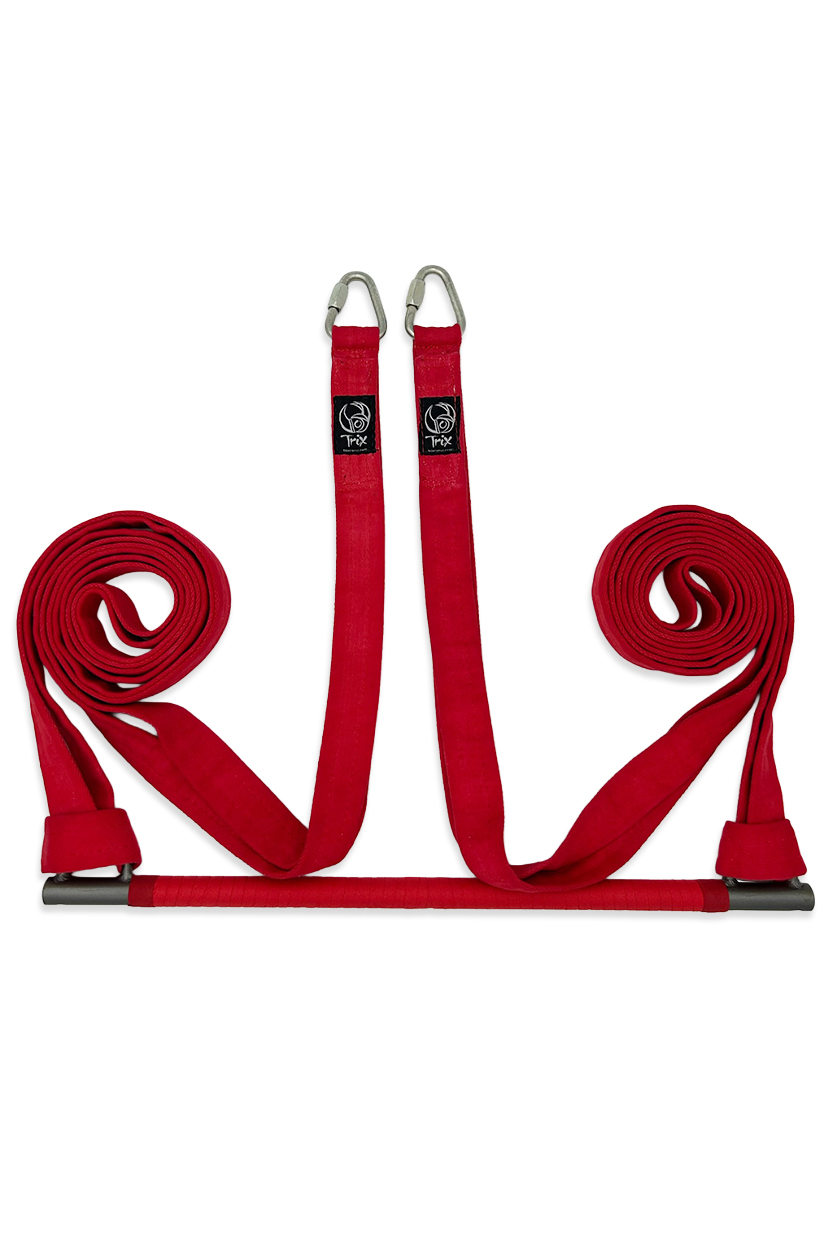

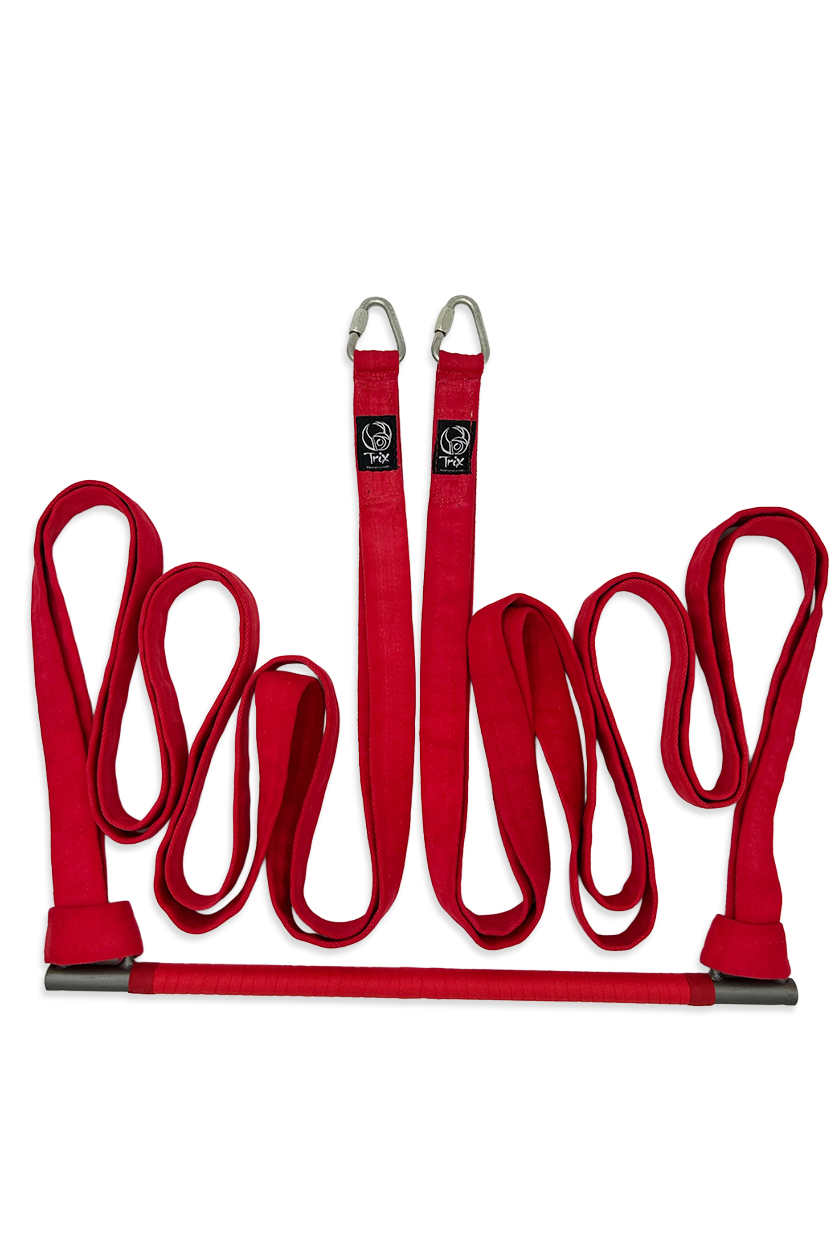

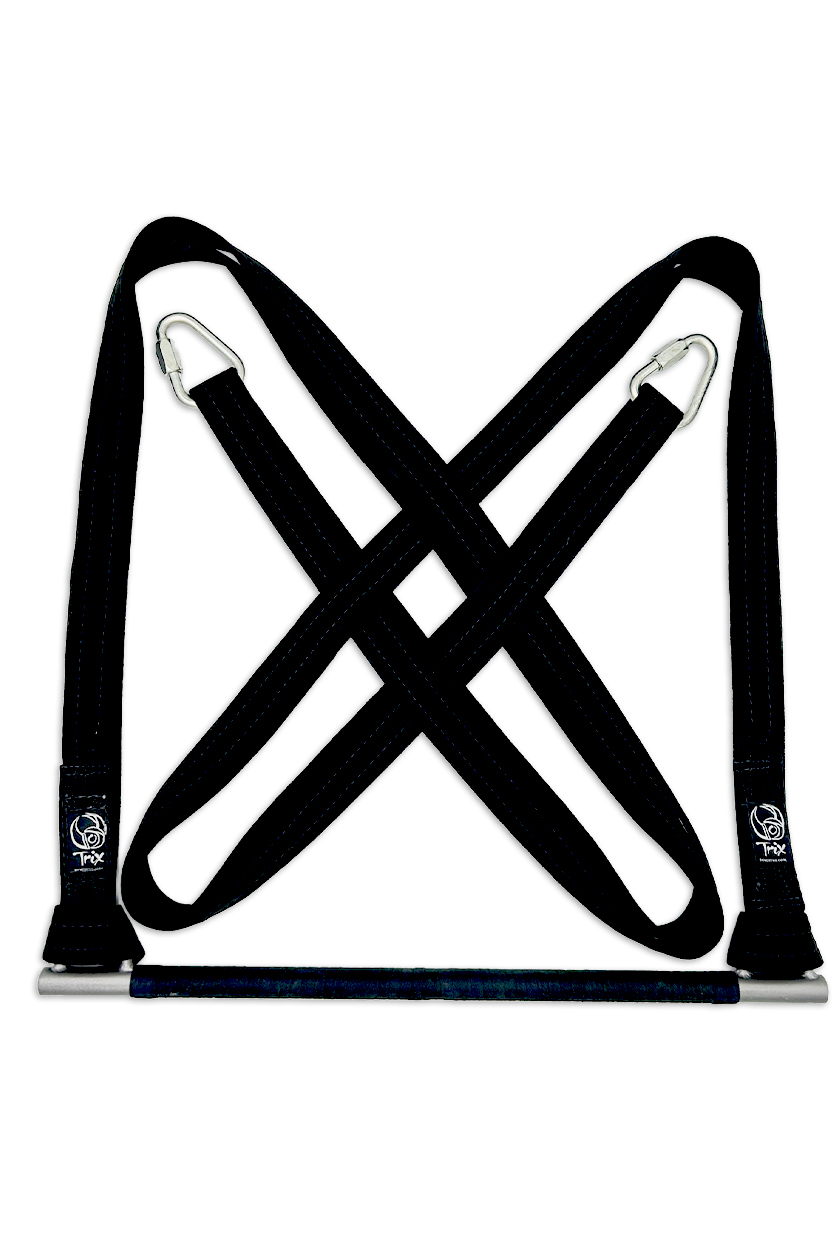

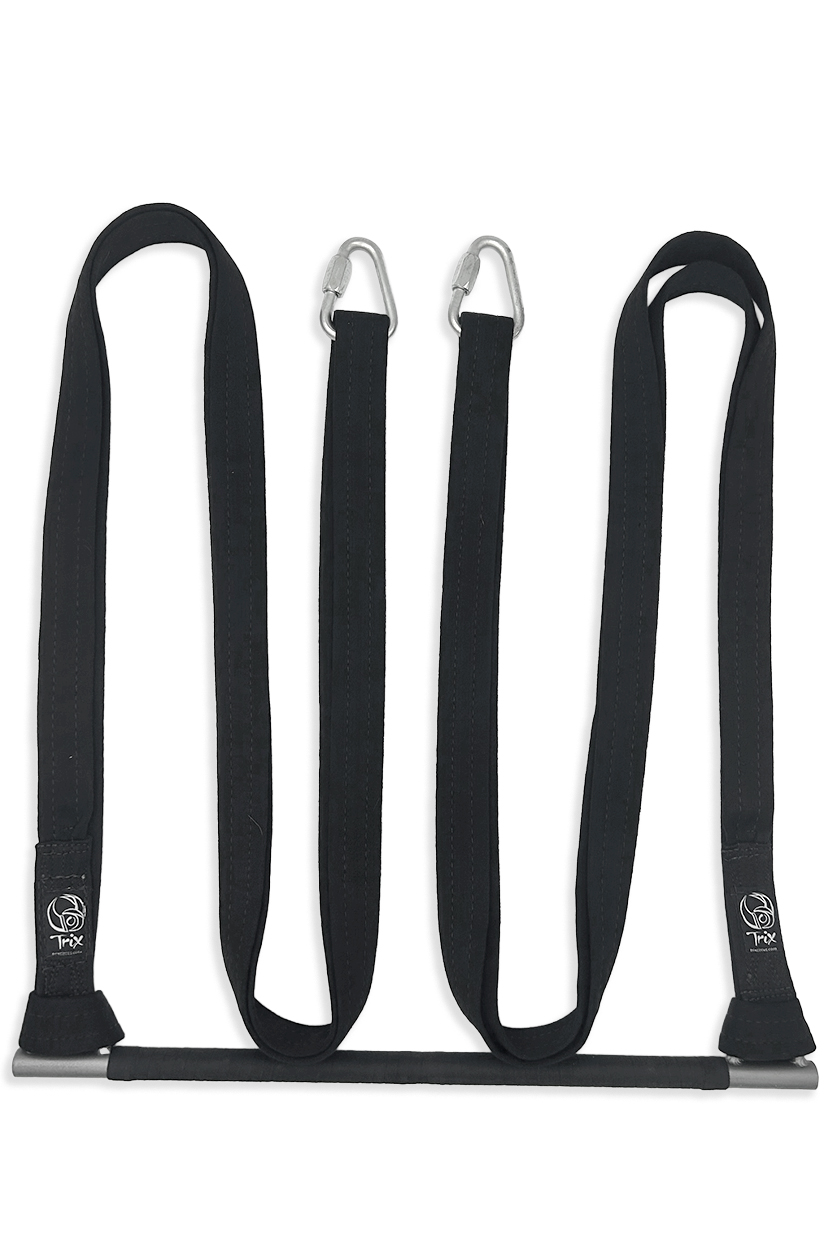

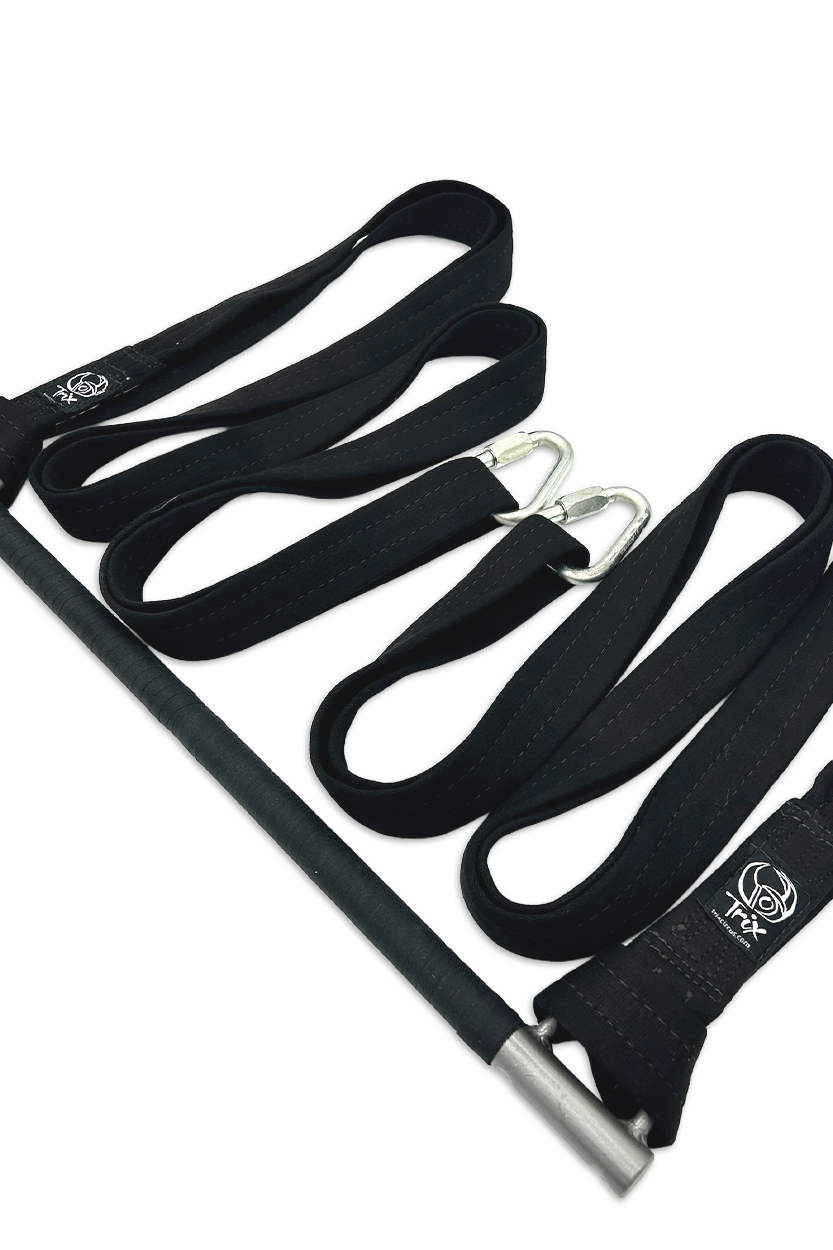

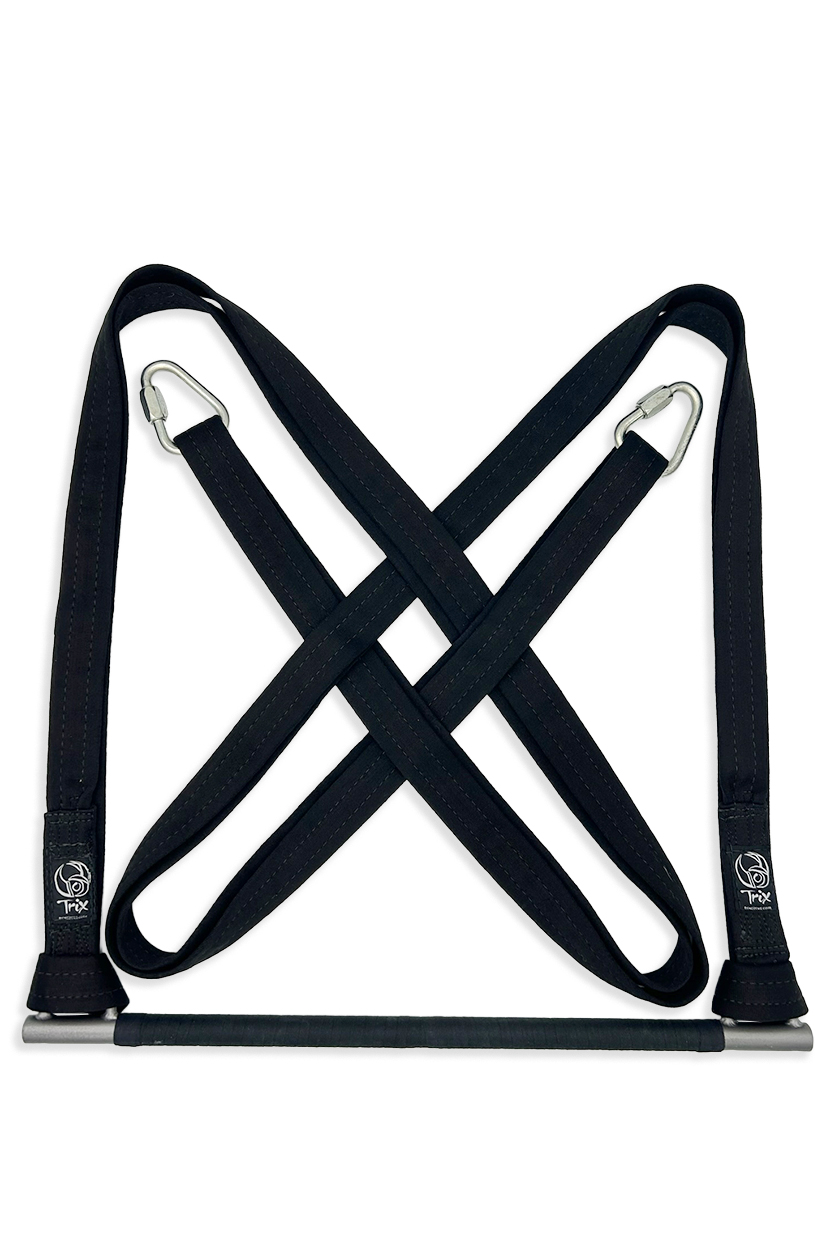

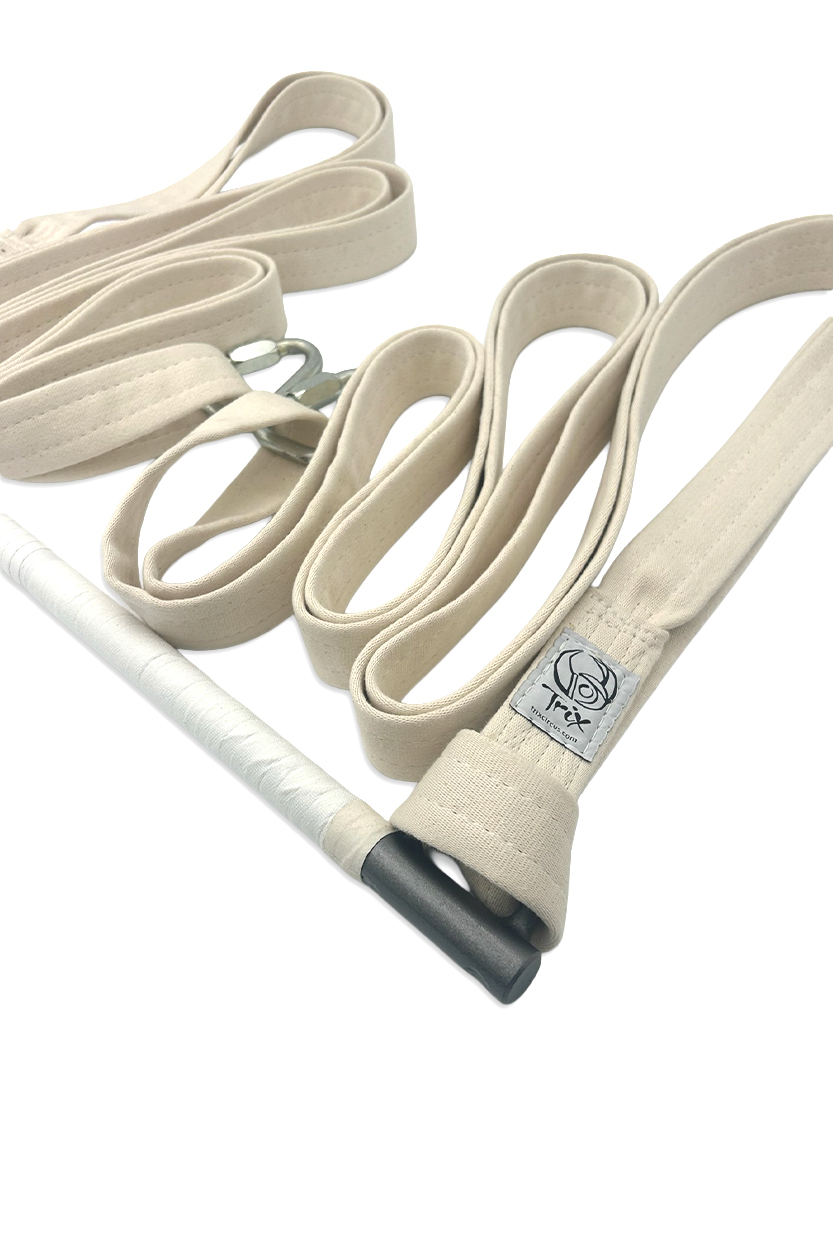

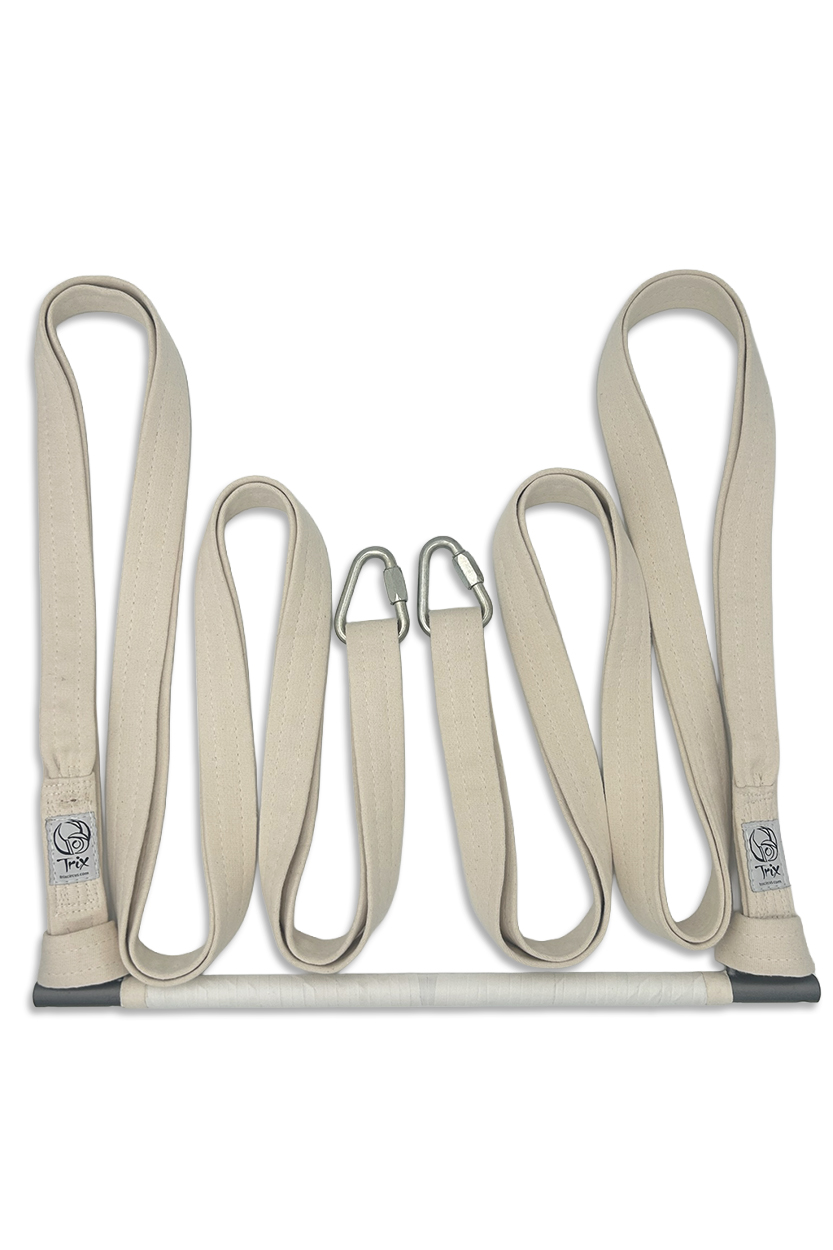

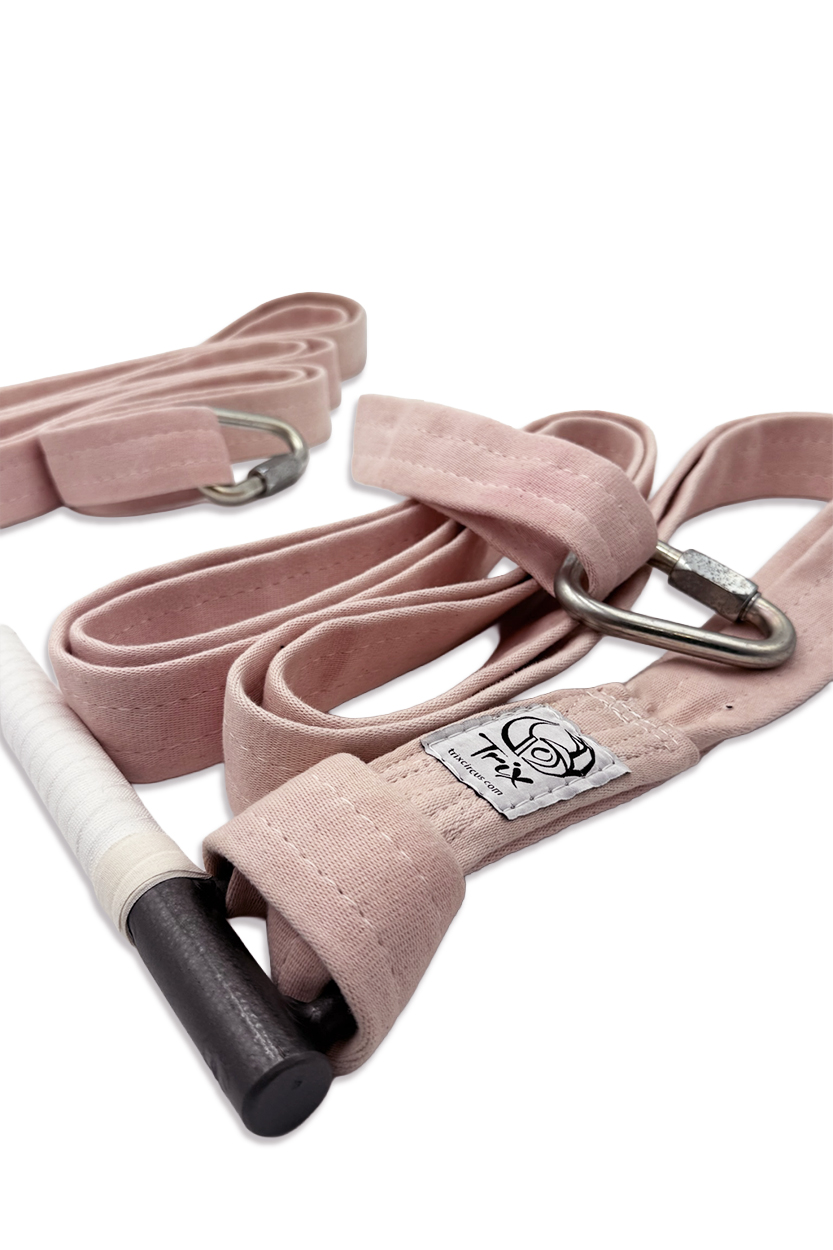

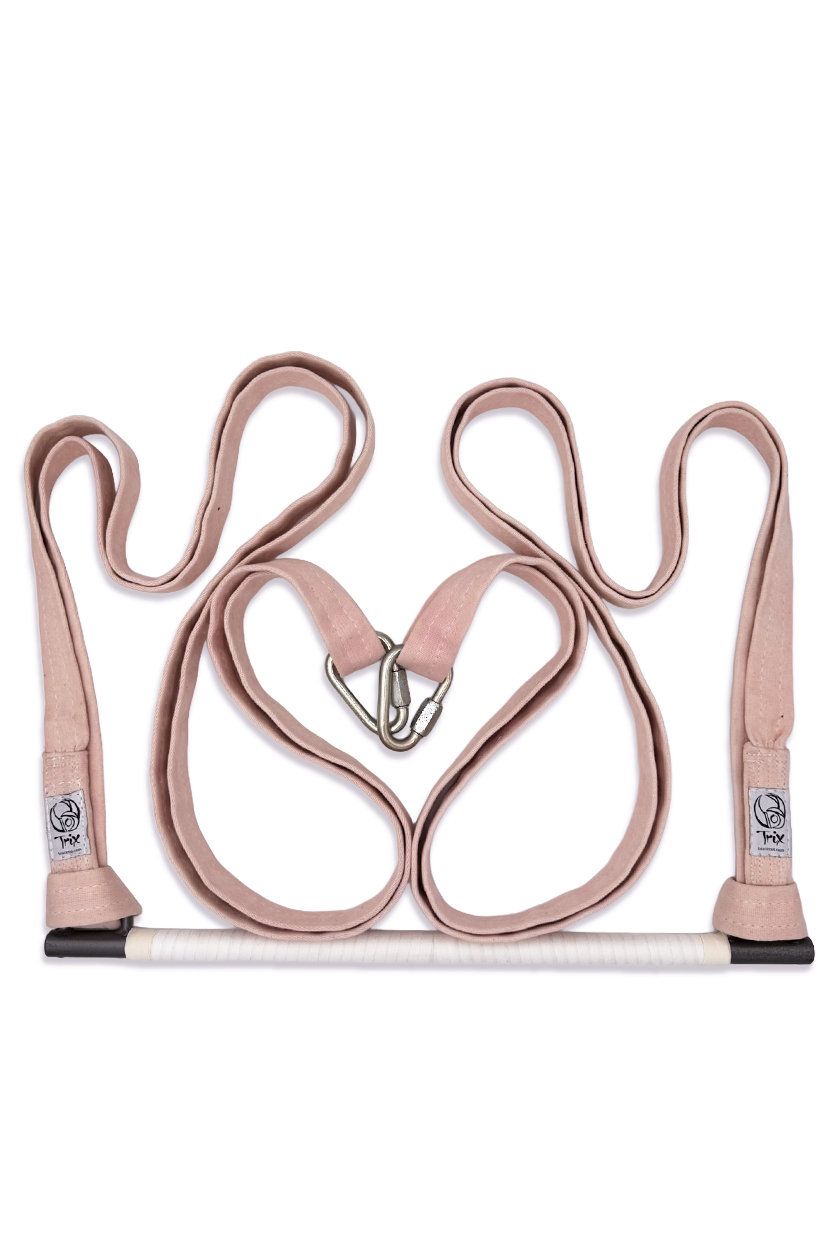

Sliding Straps Trapeze
- An engineer-certified trapeze bar made of steel to AS3990:1993 Mechanical Equipment – Steelwork. It has been designed by our professional engineers and manufactured by professional welders to AS/NZS 1554.1. It is a unique design created to ensure minimal wear on rope-to-bar connection of the trapeze.
- The working space on the bar (between the eyes) is 56cm. Due to the professional finish on the bar, customization is not possible.
- There is a dance trapeze option available. Same size between the eyes but with pegs on the outside of the eyes. This option adds an extra $35 to the cost of your trapeze. Please email us directly to organize this customization.
- The “ropes” on this type of trapeze are two looped aerial straps. All our aerial straps are made from highest quality tubular webbing. You can choose our cotton fabric in any of the regularly available colours (cream, black, red, blue and custom). The cotton fabric straps are all reinforced with nylon webbing for added strength and safety.
- Sliding and non-sliding style possible.
- 10mm stainless steel delta maillon sewn into place at the top of each strap to ensure safe and efficient rigging.
The standard padding colour is black or cream but we are able to do custom colours upon request.
Strength**
MBS ropes**
|
4,800kg
|
Dynamic WLL*
|
850kg
|
User Load Limit
|
170kg
|
*User loads must take into account dynamic forces applied and not exceed the dynamic WLL.
**MBS/WLL/ULL units reflect double rope usage.
Note:
- Due to the complicated manufacture process, there could be a variance of up to 0.5cm between the two rope (straps) lengths in the final product.
Download the Straps Trapeze Product Information Sheet
Customisation Available (additional fees and manufacture times apply)
- Bar width (with non-sliding variety)
- Straps length
- Padding colour
Please email us with details of your customisation request before you have placed your order. There are no returns or refunds on custom orders.
Recommended Addition
Triangle System
Please read our Trix Circus Guarantee Policy before purchasing this product.
This product is proudly certified Australian Made
