Description
Design Components

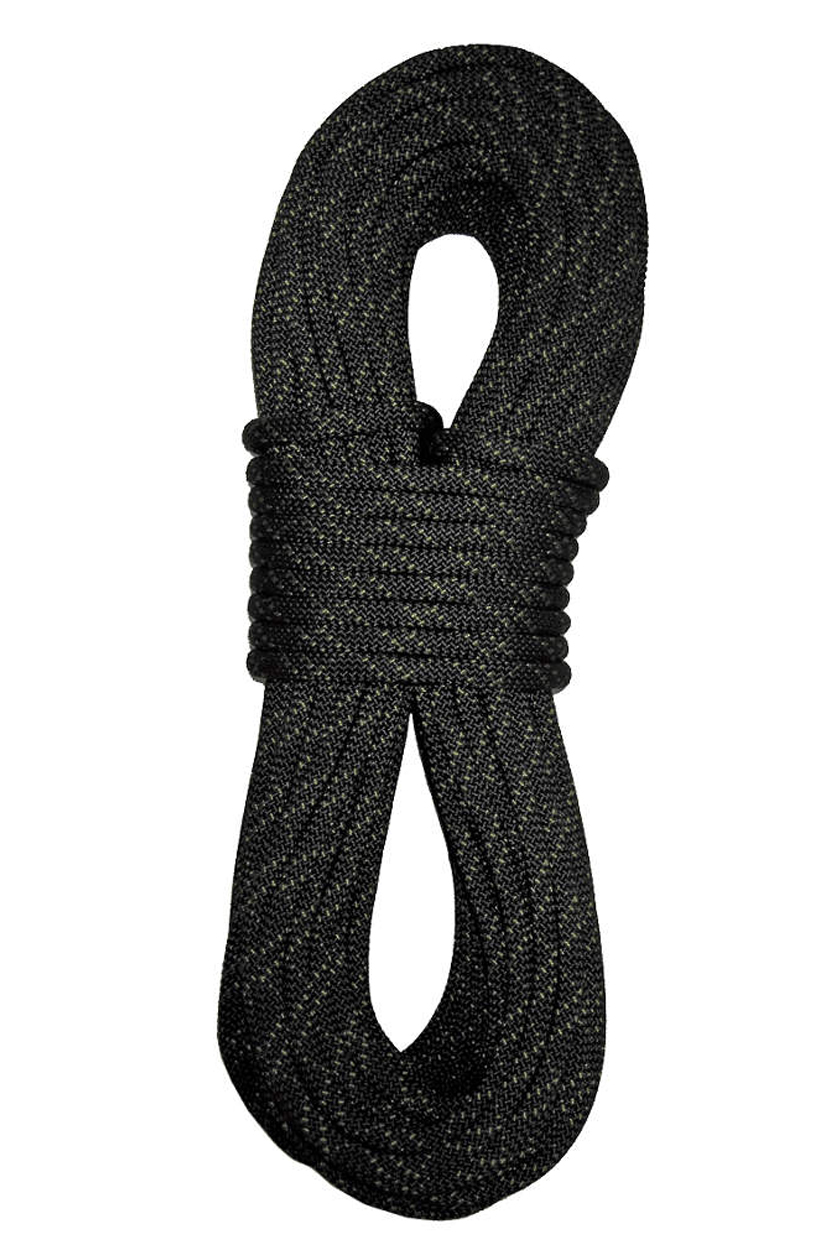

Sterling HTP 11mm (7/16”) rope.
High-Tenacity Polyester Static Rope
Diameter: 11mm (7/16″)
Type of Fiber: Polyester
Class: Technical Use Rope
Elongation
@ 1.35kN (300 lbs) \ 1.9%
@ 2.7kN (600 Ibs) \ 2.8%
@ 4.4kN(1000 lbs) | 3.5%
7/16″ HTP
Strength
Min Break Strength: 30.5kN \ 6856 Ibs
MBS: 26 kN.
Regular visual inspection of ropes by a qualified professional is a necessity. We recommend having all rigging gear on a schedule of maintenance and retirement.
Meets the manufacturer-supplied eye termination requirements of INFPA 1983, incorporated in the 2022 edition of NFPA 2500
Meets the life safety rope requirements of NFPA 1983, incorporated in the 2022 edition of NFPA 2500.
Meets the single anchor lifeline requirements of ANSI/ASSP 2359-15-2014
Ordering
To purchase your desired length, please enter the number of units of rope you would like to buy and we will use that number to measure the total length (ie. 17 items of rope = 17m length of rope).
| HTP | 7/16″ |
|---|---|
| Diameter (mm) | 11.0 |
| Minimum Break Strength Rating (lbs) | 6,856 |
| Minimum Break Strength Rating (kN) | 30.5 |
| Sewn Eye MBS Rating (lbs) | 5,845 |
| Sewn Eye MBS Rating (kN) | 26.0 |
| Weight (lbs / 100′) | 6.5 |
| Safe Working Load (10:1 lbs) | 686 |
| Elongation @ 300 lbs (%) | 1.9 |
| Elongation @ 10% MBS (%) | 4.0 |
| Elongation @ 900lbs (4kN) (%) | 3.3 |
| Average Break Strength Rating (lbs) | 7,568 |
| Average Break Strength Rating (kN) | 33.7 |
| Sheath Material | Polyester |
| Core Material | Polyester |
| NFPA 1983 Rating | Technical |
| ANSI Z133 | Yes |
| ANSI Z359.15 | Yes |
