Description

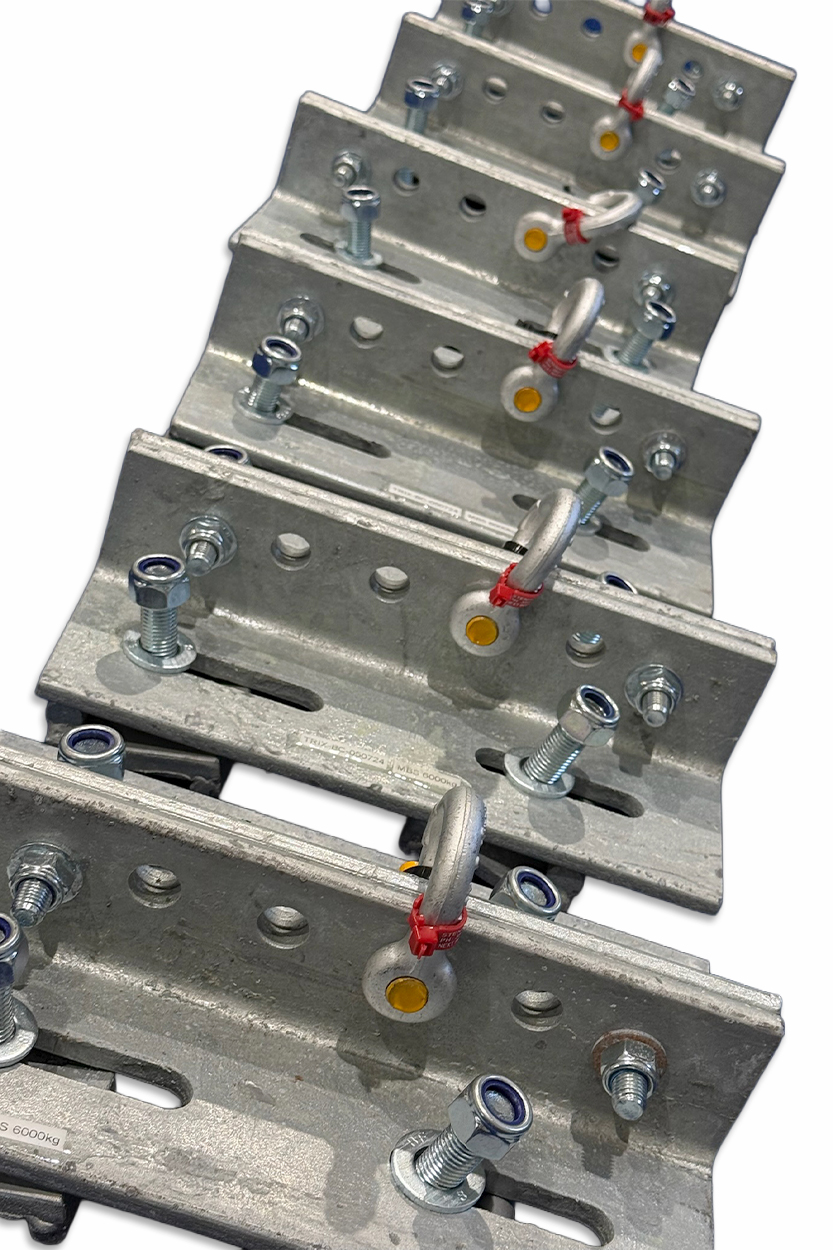

This beam clamp is perfect for mounting gear or pulley systems to structural I-beams. This is specifically engineered and certified for aerial use. It is suitable for use with pulley systems running inline with the I-beam. They can fit a number of beams sizes ranging from the UB150 to UB 530. They are designed to hold a load between 0 degree a 90 degree angle from vertical to horizontal (i.e. a common pulley system used in circus schools/studios). They are designed for use as an anchor on a horizontal beam, not as an anchor on a vertical beam (unless backed up by another Trix beam clamp or similar anchor). Use on a pitched roof is permitted as long as the pitch is no greater than 45 degrees.
Meets: AS 4100 – Steel Structures and AS 4991.2004 – Lifting Devices
The beam clamp comes with four 16mm nyloc bolts for anchoring onto the beam as well as two 12mm nyloc bolts for joining the plates . This clamp should only be installed by a qualified advanced rigger with the relevant experience installing specialised clamps and tightening nyloc nuts to an appropriate torque.
Clamps and associated fixings to be checked at maximum of six (6) monthly intervals. Trix Circus does not assume that the existing structural frame has sufficient structural capacity. Each installation must contract a structural engineer to assess the existing structural frame and its capacity to support the expected loads. Please contact us directly if you would like us to consult on your project.
Clamps must always be used with a 2t shackle as the primary connector. Carabiners will wear the connection point when pulled on an angle.
*Pulleys, connectors and other equipment sold separately.
Design Components
Painted steel construction
Rounded corners
2 anchor points
2 hoist/diversion/accessory points
| Strength | |
|---|---|
| Combined Working Load Limit (WLL) | 3,000kg |
| Combined Minimum Breaking Strain (MBS) | 6,000kg |
| Anchor Points WLL | 1,500kg (each) or 3,000kg (combined) |
| Hoist Points WLL | 500kg each |
Download the product information and use guide
Optional Extras
Rigging designs including a ground based anchoring system to make your studio very versatile and adjustable.
Please read our Trix Circus Guarantee Policy before purchasing this product.
This product is proudly certified Australian Made
